Port Forwarding - ZTE - ZXDSL 831C11 (PTCL Firmware)

ZTE - ZXDSL 831C11 (PTCL Firmware)

Port Forwarding Guide
For automatic port forwarding try Simple Port Forwarding

Step 1.

Some routers & modems work best with port forwarding if you have a static local IP.
Manually set your network interface card ( NIC ) to use a static ip address.
You can also download my FREE Simple Static IP tool to set it for you.

Step 2.

Open your favorite web browser and input your routers ip address in the address bar.
Please note that you must have the http:// in order to connect to your router/modem properly.


Need help finding you router IP address? Click here

Step 3.

Enter the routers password here and click the OK button.

If you don't know it you can check our list of default router and modem password list here.

If you have changed it and don't remember it you may have to reset your device to factory default using the reset button on most routers.

Step 4.

Once logged into your router click on the "Advanced" link on the top of the page.

Click To View Full Picture

Step 5
Once the page loads click the "NAT" link at the left of the page.

Then click the "Virtual Server" link in the middle of the page.

Click To View Full Picture

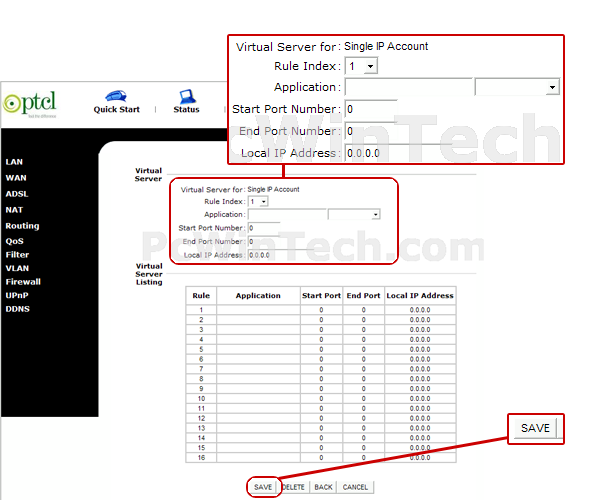

Step 6

Now for "Rule Index" select an empty slot from the list or use the default.

For "Application" use the default.

For "Start Port Number" enter the port number.

For "End Port Number" enter the port number.
Example: Start: 2100 End: 2200 for a range, OR Start: 2100 End: 2100 for a single port.

For "Local IP Address" enter the IP address of the computer you want to forward the port(s) to.

Now click the "Save" button at the bottom.

Repeat Step 6 to add more rules.

Click To View Full Picture

All done!
