Port Forwarding Guide
For automatic port forwarding try Simple Port Forwarding

Step 1.

Some routers & modems work best with port forwarding if you have a static local IP.
Manually set your network interface card ( NIC ) to use a static ip address.
You can also download my FREE Simple Static IP tool to set it for you.

Step 2.

Open your favorite web browser and input your routers ip address in the address bar.
Please note that you must have the http:// in order to connect to your router/modem properly.


Need help finding you router IP address? Click here

Step 3.

Enter the routers username and password here and click the GO button.

If you don't know it you can check our list of default router and modem password list here.

If you have changed it and don't remember it you may have to reset your device to factory default using the reset button on most routers.

Step 4.

Once logged into your router click on the "Advanced Setup" link on the top of the page.

Click To View Full Picture

Step 5

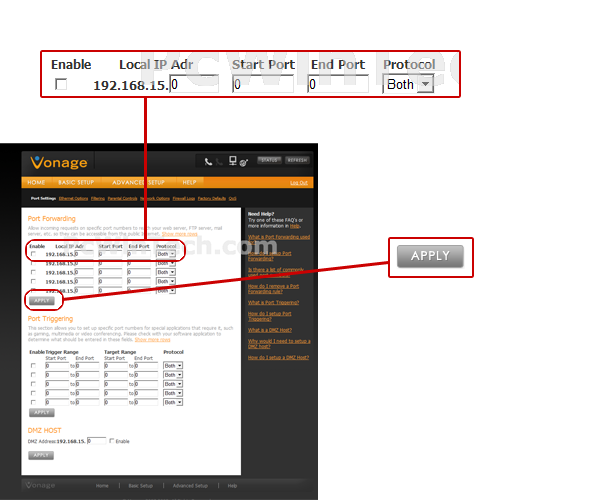

Now we will be working under the "Port Forwarding" heading.

Note: If your lists of rules are filled up, then you may have to click the link "Show more rows" in order to add new rules to your router.

Now check the "Enable" box.

For "Local IP Adr." enter the IP address of the computer you wish to forward the port to.

For "Start Port" enter the port you wish to forward.

For "End Port" enter the port you wish to forward.
Example: Start Port: 2100 End Port: 2200 for a range, OR Start Port: 2100 End Port: 2100 for a single port.

For "Protocol" select the protocol you want to use.

Repeat Step 5 to add more rules.

Click the "Apply" button at the end of the list to save your settings.

Click To View Full Picture

All done!
