Port Forwarding - Unicom - WEP-72104G-1 (Unicom Firmware)

Unicom - WEP-72104G-1 (Unicom Firmware)

Port Forwarding Guide
For automatic port forwarding try Simple Port Forwarding

Step 1.

Some routers & modems work best with port forwarding if you have a static local IP.
Manually set your network interface card ( NIC ) to use a static ip address.
You can also download my FREE Simple Static IP tool to set it for you.

Step 2.

Open your favorite web browser and input your routers ip address in the address bar.
Please note that you must have the http:// in order to connect to your router/modem properly.



Need help finding you router IP address? Click here

Step 3.

Enter the routers password here and click the OK button.

If you don't know it you can check our list of default router and modem password list here.

If you have changed it and don't remember it you may have to reset your device to factory default using the reset button on most routers.

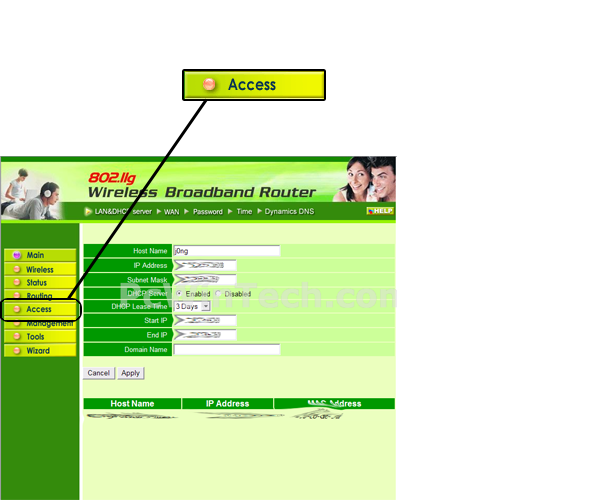

Step 4.

Once logged into your router click on the "Access" link on the left of the page.

Click To View Full Picture

Step 5
Once the page loads click on "Virtual Server" at the top of the page.


Click To View Full Picture

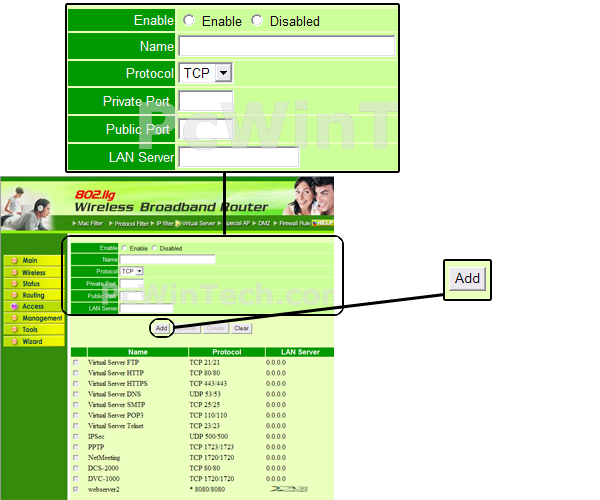

Step 6


Once the page loads click on the "Enable" option.

For "Name" give your rule a name.

For "Protocol" Select the protocol you want to use.

For "Private Port" Enter the port you want to forward.

For "Public Port" Enter the port you want to forward.

For "LAN Server" enter the IP address of the computer you want to forward the port to.

Click the "Add" Box to save your new rule.

Repeat step 6 to add more ports.


Click To View Full Picture

All done!
