Port Forwarding - D-Link - DSL-526B (D-Link Firmware)

D-Link - DSL-526B (D-Link Firmware)


Port Forwarding Guide
For automatic port forwarding try Simple Port Forwarding

Step 1.

Some routers & modems work best with port forwarding if you have a static local IP.
Manually set your network interface card ( NIC ) to use a static ip address.
You can also download my FREE Simple Static IP tool to set it for you.

Step 2.

Open your favorite web browser and input your routers ip address in the address bar.
Please note that you must have the http:// in order to connect to your router/modem properly.

Need help finding you router IP address? Click here

Step 3.

Some router/modems require a username and/or password, if yours requires it, enter the routers username and password here.

If you don't know it you can check our list of default router and modem password list here.

If you have changed it and don't remember it you may have to reset your device to factory default using the reset button on most routers.


Click To View Full Picture

Step 4.

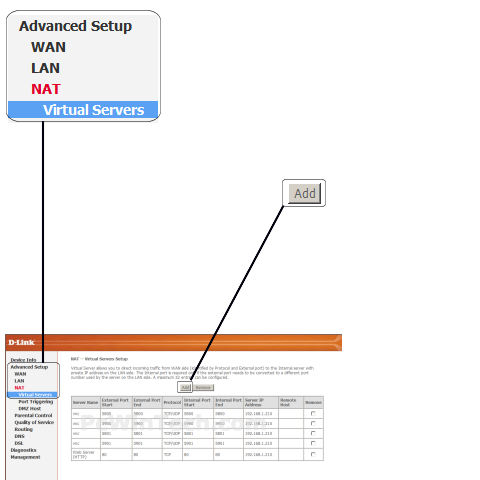

Once logged into your router click on the "Advanced Setup".

Once the page has loaded click on "NAT" then "Virtual Servers"

Once the page has loaded click "Add"


Click To View Full Picture

Step 5.

Choose the "Custom Server" option.

For "Custom Server" give your entry a name, it must not be the same as any others on this page.

Next enter the computers IP address in the "Server IP Address" field.

In "External Port Start" enter the port to be forwarded.
Example: 2100

In "External Port End" enter the port to be forwarded. If a range enter the ending port.
Example: 2200

Next select the protocol in "Protocol"

In "Internal Port Start" enter the port to be forwarded.
Example: 2100

In "Internal Port End" enter the port to be forwarded. If a range enter the ending port.
Example: 2200

Leave "Remote IP" blank.

Click "Save/Apply"




Click To View Full Picture
