Port Forwarding - D-Link - DIR-601 (D-Link v1 Firmware)

D-Link - DIR-601 (D-Link v1 Firmware)

Port Forwarding Guide
For automatic port forwarding try Simple Port Forwarding

Step 1.

Some routers & modems work best with port forwarding if you have a static local IP.
Manually set your network interface card ( NIC ) to use a static ip address.
You can also download my FREE Simple Static IP tool to set it for you.

Step 2.

Open your favorite web browser and input your routers ip address in the address bar.
Please note that you must have the http:// in order to connect to your router/modem properly.

Need help finding you router IP address? Click here

Step 3.

Some router/modems require a username and/or password, if yours requires it, enter the routers username and password here.

If you don't know it you can check our list of default router and modem password list here.

If you have changed it and don't remember it you may have to reset your device to factory default using the reset button on most routers.

Click To View Full Picture

Step 4.

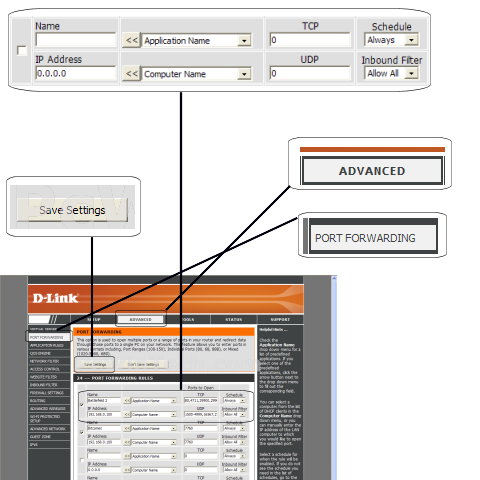

Once logged into your router click on "Advanced".

Once the page has loaded click on "Port Forwarding"

Be sure to check mark the small box to the left of "Name and IP address"

For "Name" Give your entry a name, it must not be the same as any others on this page.

Next enter the computers IP address in the "IP Address" field.

In "TCP" enter a port or range to be forwarded.
Example: 2100-2200 or 2200

Do the same for "UDP" if required.

Repeat steps for any more ports you need to forward.

Click "Save Settings"

All Done!

Click To View Full Picture
