Port Forwarding - Belkin - F5D7234-4 v5 (Belkin Firmware)

Belkin - F5D7234-4 v5 (Belkin Firmware)

Port Forwarding Guide
For automatic port forwarding try Simple Port Forwarding

Step 1.

Some routers & modems work best with port forwarding if you have a static local IP.
Manually set your network interface card ( NIC ) to use a static ip address.
You can also download my FREE Simple Static IP tool to set it for you.

Step 2.

Open your favorite web browser and input your routers ip address in the address bar.
Please note that you must have the http:// in order to connect to your router/modem properly.


Need help finding you router IP address? Click here

Step 3.

Enter the routers password here and click the submit button.

If you don't know it you can check our list of default router and modem password list here.

If you have changed it and don't remember it you may have to reset your device to factory default using the reset button on most routers.

Step 4.

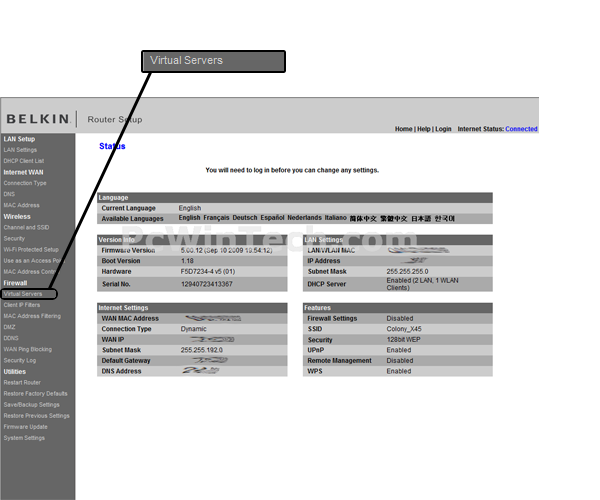

Once logged into your router click on the Virtual Servers" link on the left of the page listed under "Firewall".

Click To View Full Picture

Step 5

Now when the page loads check the enable box.

For 'Description' give your entry a name.

In 'Inbound port' enter the port to be forwarded.
Example: 2100 - 2100 for a single port, or 2100 - 2200 for a range.

Select the 'Type' of protocol for the rule.

For 'Private IP address' put the local IP of the computer the port will be forwarded to.

For 'Private port' put in the ending port to be forwarded.

Repeat Step 5 to add more ports to the list.

Click the 'Apply Changes' button to save the new rule.

Click To View Full Picture

All done!
