Port Forwarding - Belkin - F1PI241EGau (iinet.net.au Firmware)

Belkin - F1PI241EGau (iinet.net.au Firmware)

Port Forwarding Guide
For automatic port forwarding try Simple Port Forwarding

Step 1.

Some routers & modems work best with port forwarding if you have a static local IP.
Manually set your network interface card ( NIC ) to use a static ip address.
You can also download my FREE Simple Static IP tool to set it for you.

Step 2.

Open your favorite web browser and input your routers ip address in the address bar.
Please note that you must have the http:// in order to connect to your router/modem properly.


Need help finding you router IP address? Click here

Step 3.

Enter the routers password here and click the submit button.

If you don't know it you can check our list of default router and modem password list here.

If you have changed it and don't remember it you may have to reset your device to factory default using the reset button on most routers.

Step 4.

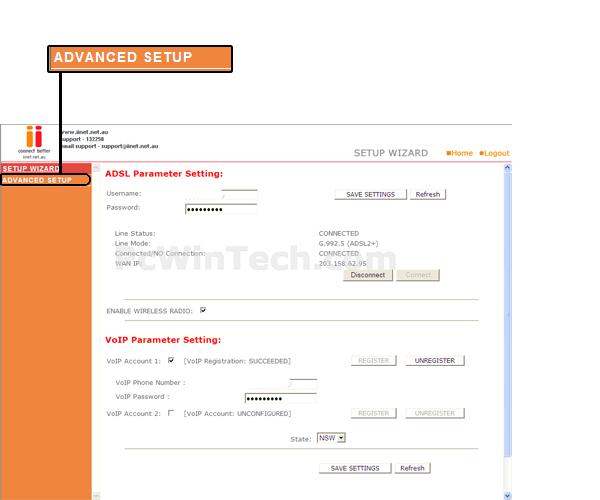

Once logged into your router click on the "Advanced Setup" link on the left of the page.

Click To View Full Picture

Step 5

After the page loads click the "NAT" link on the left of the page.

Now click on the "Port Forwarding" link listed under "NAT".

Click To View Full Picture


Step 6

Now when the page loads check the enable box.

For 'LAN IP Address' put the local IP of the computer the port will be forwarded to.

Select the 'Protocol Type' of protocol for the rule.

In 'LAN port' enter the port to be forwarded.
Example: 2100

For 'Public port' put in the port to be forwarded.

Click the 'Add' button to save the new rule.

Repeat step 6 to add more ports.

Click To View Full Picture

All done!
