Port Forwarding - Axesstel - CDMA 1xEV-D0 (Axesstel Firmware)

Axesstel - CDMA 1xEV-D0 (Axesstel Firmware)
Port Forwarding Guide
For automatic port forwarding try Simple Port Forwarding

Step 1.

Some routers & modems work best with port forwarding if you have a static local IP.
Manually set your network interface card ( NIC ) to use a static ip address.
You can also download my FREE Simple Static IP tool to set it for you.

Step 2.

Open your favorite web browser and input your routers ip address in the address bar.
Please note that you must have the http:// in order to connect to your router/modem properly.

Need help finding you router IP address? Click here

Step 3.

Some router/modems require a username and/or password, if yours requires it, enter the routers username and password here.

If you have changed it and don't remember it you may have to reset your device to factory default using the reset button on most routers.

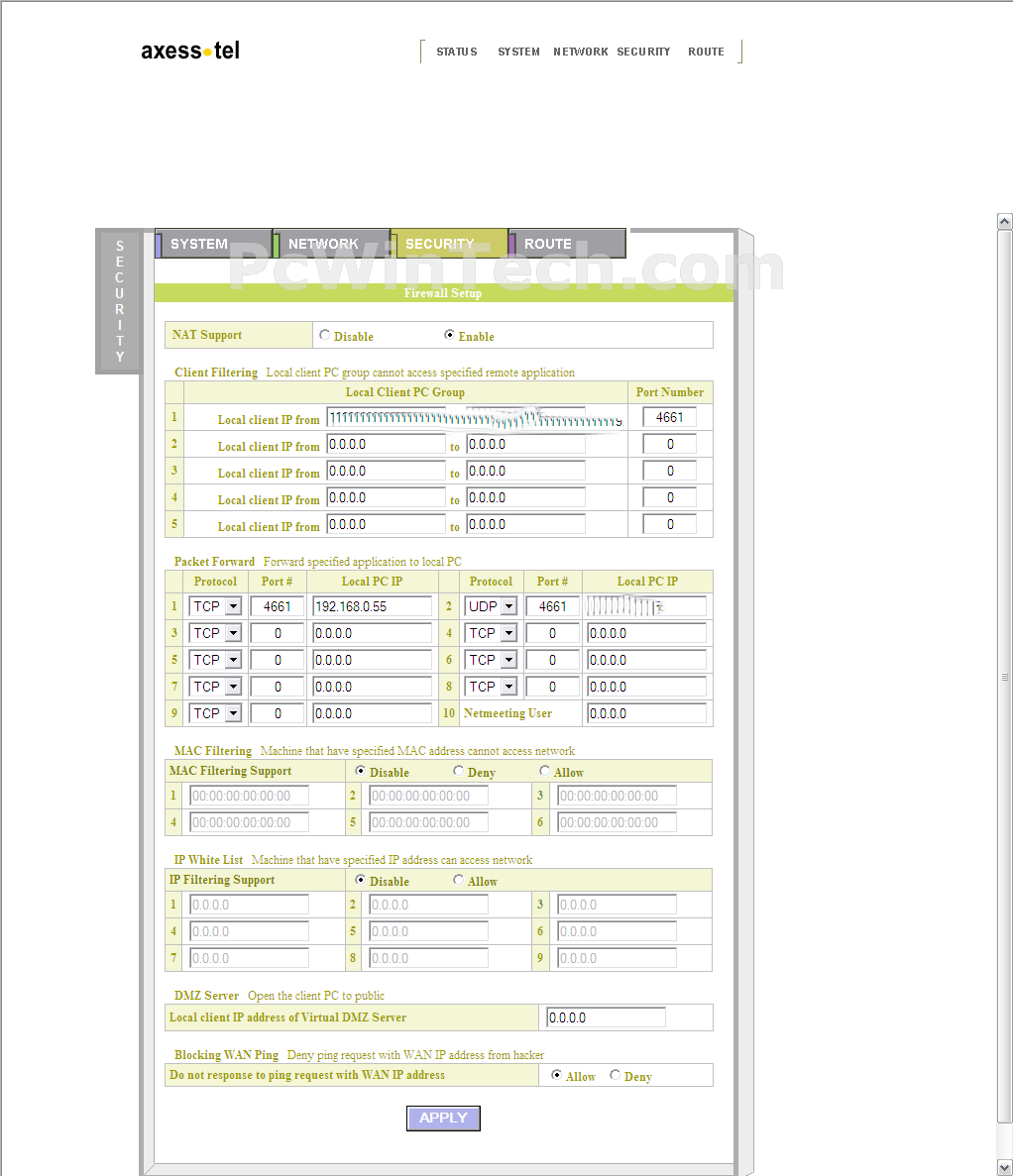

Step 4.

Once logged into your router click on "Security"

Click To View Full Picture

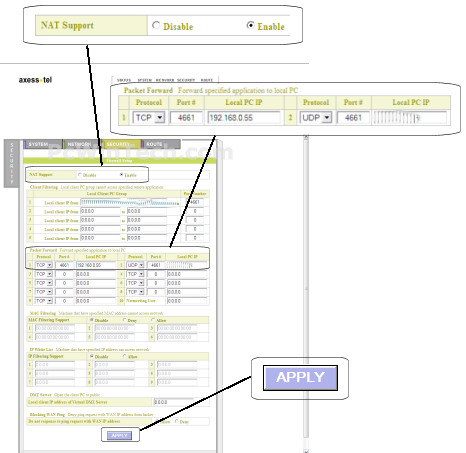

Step 5.

Once the page has loaded click "Enable" in the "NAT Support" field.

Next choose the "Protocol" you want to use.

In "Port #" enter the staring port you want to use.

Enter the computers IP address in "Local PC IP"

Now in "Port #" enter the ending port you would like to use.

Again enter the IP address in "Local PC IP"

Repeat step 5 for any more ports you want to forward.

Click on "Apply"

All Done!

Click To View Full Picture
