Port Forwarding - Airlive - WT-2000R (Airlive Firmware)

Airlive - WT-2000R (Airlive Firmware)

Port Forwarding Guide
For automatic port forwarding try Simple Port Forwarding

Step 1.

Some routers & modems work best with port forwarding if you have a static local IP.
Manually set your network interface card ( NIC ) to use a static ip address.
You can also download my FREE Simple Static IP tool to set it for you.

Step 2.

Open your favorite web browser and input your routers ip address in the address bar.
Please note that you must have the http:// in order to connect to your router/modem properly.


Need help finding you router IP address? Click here

Step 3.

Enter the routers password here and click the submit button.

If you don't know it you can check our list of default router and modem password list here.

If you have changed it and don't remember it you may have to reset your device to factory default using the reset button on most routers.

Step 4.

Once logged into your router click on the "Port Forwarding" link on the left of the page.

Click To View Full Picture

Step 5
After the page loads click on "Virtual Server" under "Port Forwarding".

Click To View Full Picture

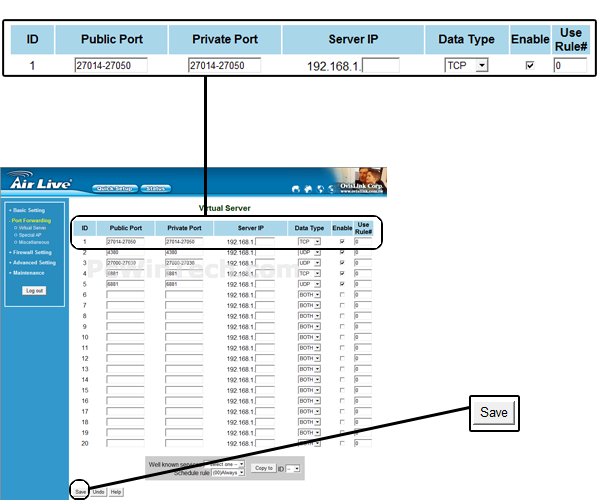

Step 6

Now for "Public Port" enter the port(s) you want to forward.
Example: 2100-2200 for a range or ports, OR 2100 for just a single port.

For "Private Port" enter the port(s) you want to forward.

For "Server IP" enter the IP address of the computer you want to forward the port(s) to.

For "Data Type" select the protocol type you want to use.

Now check the "Enable" box.

For "Use Rule #" use the default.

Repeat Step 6 to add more ports.

When finished click the "Save" button.

Click To View Full Picture

All done!
