Port Forwarding - Actiontec - Q1000 (Qwest Firmware)

Actiontec - Q1000 (Qwest Firmware)

Port Forwarding Guide
For automatic port forwarding try Simple Port Forwarding

Step 1.

Some routers & modems work best with port forwarding if you have a static local IP.
Manually set your network interface card ( NIC ) to use a static ip address.
You can also download my FREE Simple Static IP tool to set it for you.

Step 2.

Open your favorite web browser and input your routers ip address in the address bar.
Please note that you must have the http:// in order to connect to your router/modem properly.

Need help finding you router IP address? Click here

Step 3.

Some router/modems require a username and/or password, if yours requires it, enter the routers username and password here.

If you don't know it you can check our list of default router and modem password list here.

If you have changed it and don't remember it you may have to reset your device to factory default using the reset button on most routers.


Step 4.

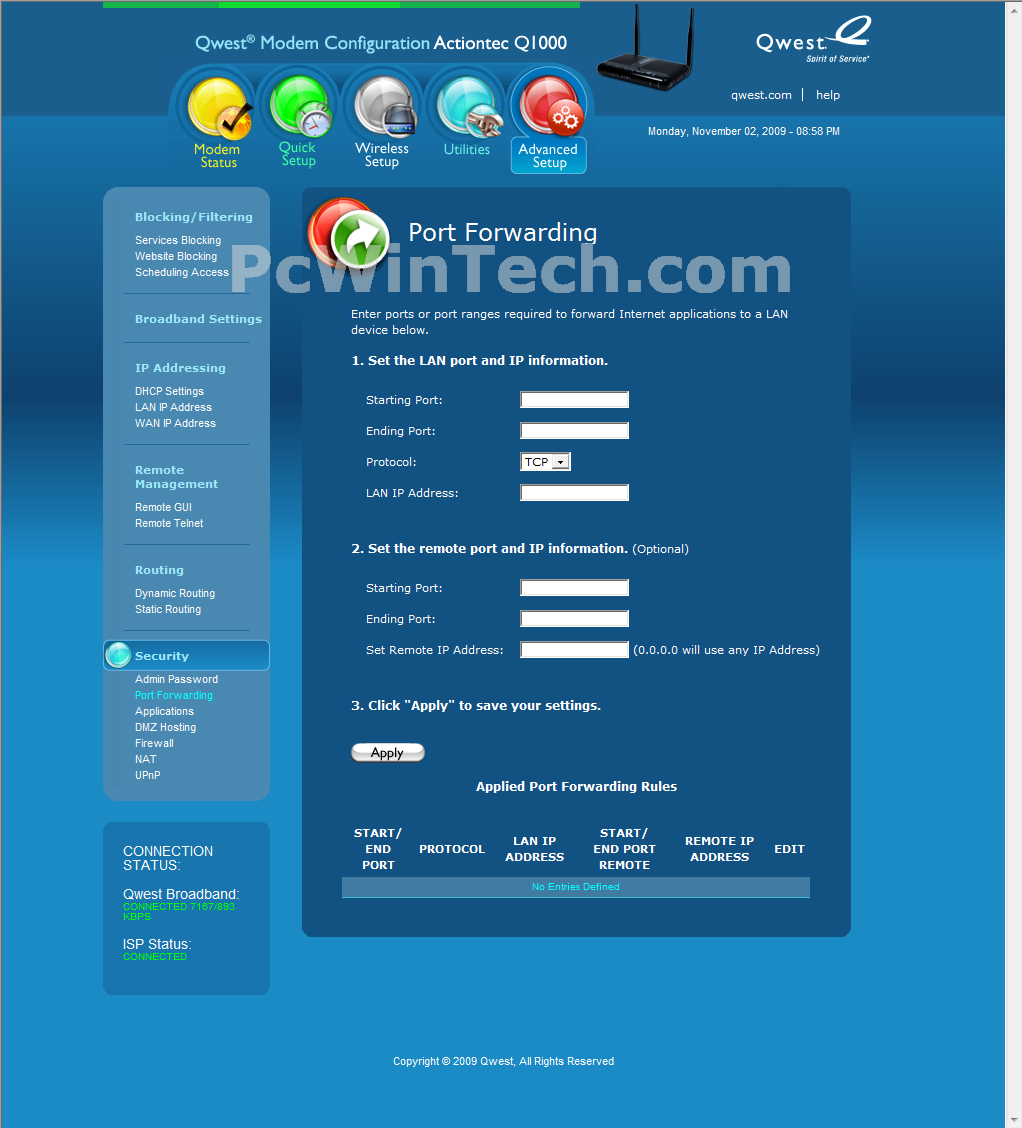

Once logged into your router click on the "Advanced Setup" tab.

Next click on "Security"

Now click on "Advanced Port Forwarding"

Click To View Full Picture

Step 5.

For "Starting Port" enter the starting port to be forwarded.
Example: 2100

Now in "Ending Port" enter the ending port to be forwarded.
Example: 3100

Next choose the "Protocol" you want to use.

For the "LAN IP Address"  field put the local IP of the computer.

Click "Apply"

Repeat step 5 for any more ports you need to forward.

All Done!

Click To View Full Picture
