Actiontec - GT704WG (Actiontec v3.20 Firmware)


Port Forwarding Guide
For automatic port forwarding try Simple Port Forwarding

Step 1.

Some routers & modems work best with port forwarding if you have a static local IP.
Manually set your network interface card ( NIC ) to use a static ip address.
You can also download my FREE Simple Static IP tool to set it for you.

Step 2.

Open your favorite web browser and input your routers ip address in the address bar.
Please note that you must have the http:// in order to connect to your router/modem properly.

Need help finding you router IP address? Click here

Step 3.

Some router/modems require a username and/or password, if yours requires it, enter the routers username and password here.

If you don't know it you can check our list of default router and modem password list here.

If you have changed it and don't remember it you may have to reset your device to factory default using the reset button on most routers.

Step 4.

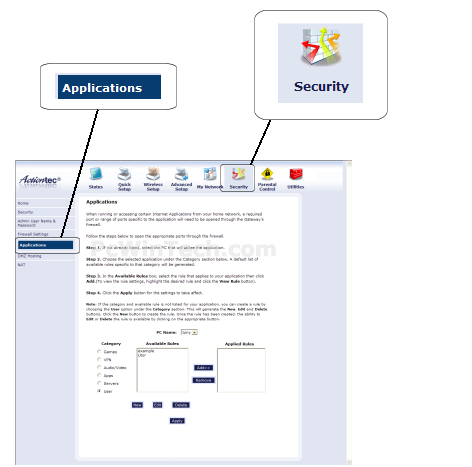

Once logged into your router click on "Security"

Next click on "Applications"

Click To View Full Picture

Step 5.

Wait for the page to load and click on "User"

Next click on "New"

Click To View Full Picture

Step 6.

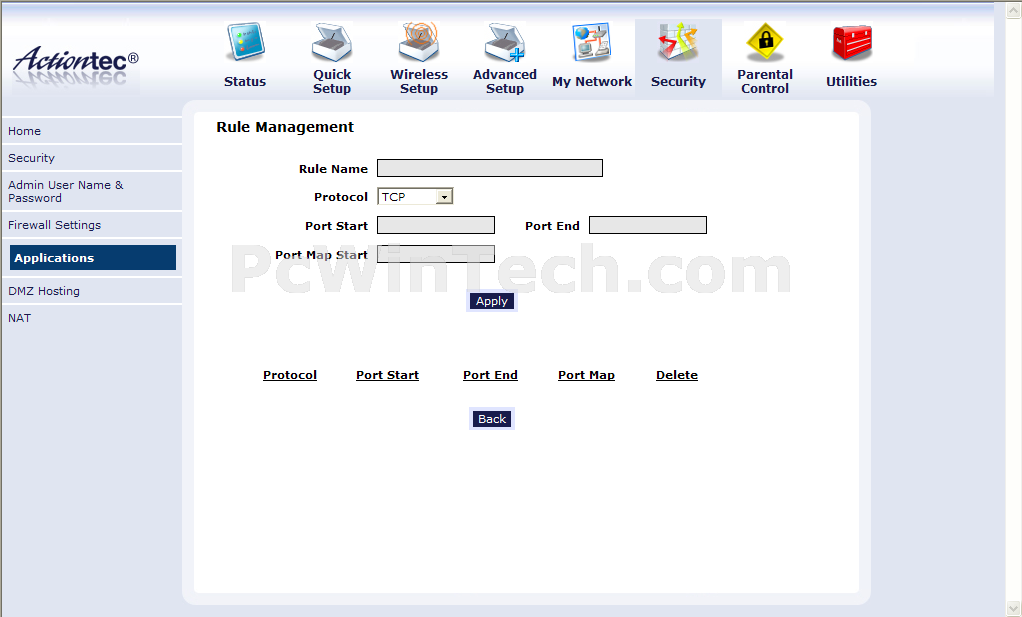

First be sure to give your entry a name under "Rule Name"

Choose your "Protocol"

For "Port Start" enter in the starting port to be forwarded.
Example: 2100

For "Port End" enter in the ending port to be forwarded.
Example: 3100

For "Port Map Start" again enter in the starting port to be forwarded.
Example: 2100

Now click on "Apply"

Click To View Full Picture

Step 7.

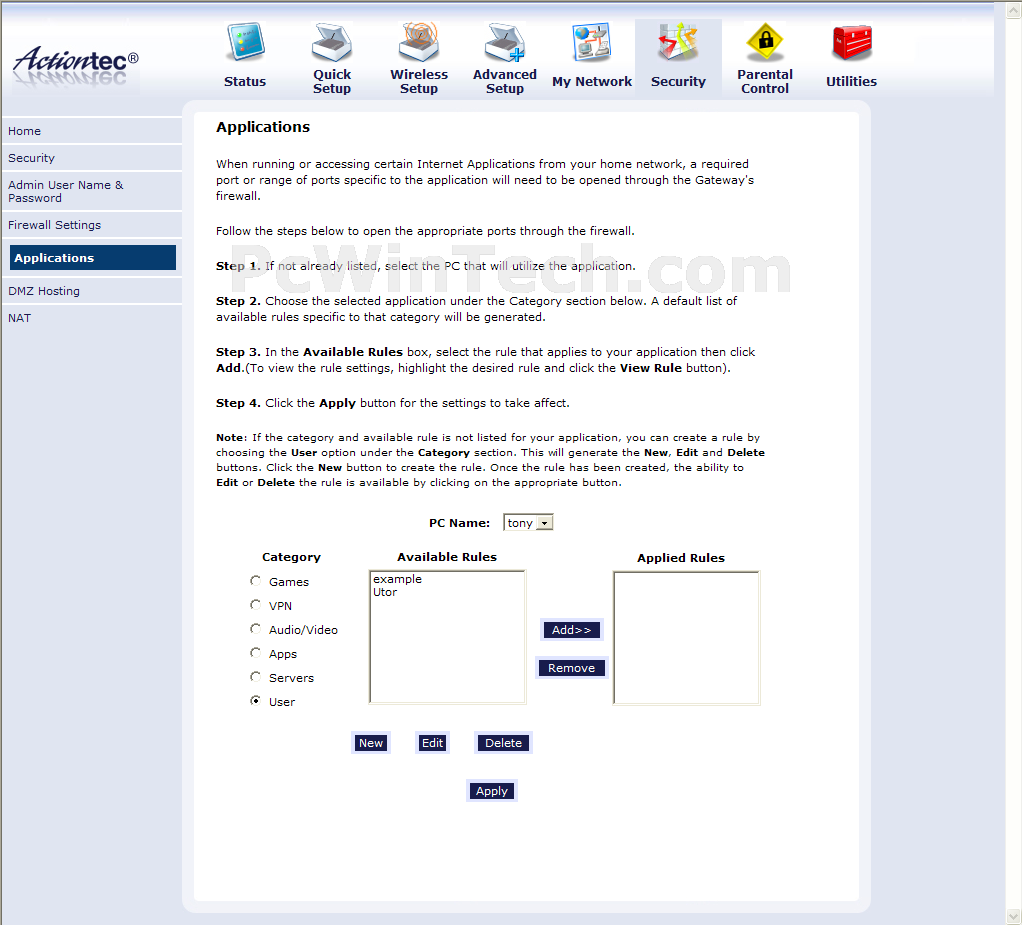

Now choose the "Available Rules" entry you would like to use by highlighting it and clicking "Add"

Now that your entry is in "Applied Rules" highlight it and click "Apply"

Repeat steps 5-7 for any other entries you would like to make.

All Done!

Click To View Full Picture
