Port Forwarding - Abocom - WR254 (Abocom Firmware)

Abocom - WR254 (Abocom Firmware)


Port Forwarding Guide
For automatic port forwarding try Simple Port Forwarding

Step 1.

Some routers & modems work best with port forwarding if you have a static local IP.
Manually set your network interface card ( NIC ) to use a static ip address.
You can also download my FREE Simple Static IP tool to set it for you.

Step 2.

Open your favorite web browser and input your routers ip address in the address bar.
Please note that you must have the http:// in order to connect to your router/modem properly.

Need help finding you router IP address? Click here

Step 3.

Some router/modems require a username and/or password, if yours requires it, enter the routers username and password here.

If you don't know it you can check our list of default router and modem password list here.

If you have changed it and don't remember it you may have to reset your device to factory default using the reset button on most routers.




Step 4.

Once logged into your router click on the "Advanced"

Next click on "Virtual Servers"


Click To View Full Picture

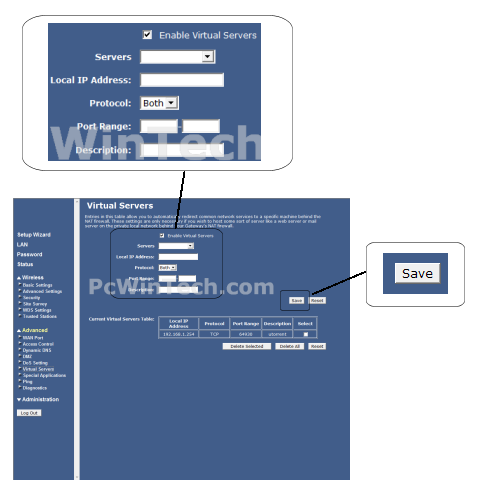

Step 5.

Wait for the page to load and check "Enable Virtual Servers"

For "Local IP Address"  field put the local IP of the computer.

Next choose the "Protocol" you want to use.

In "Port Range" enter the starting/ending ports to be forwarded.
Example: 2100-3100

Next give your entry a name under "Description"

Repeat step 5 for any more ports you need to forward.

Click "Save"

All Done!


Click To View Full Picture
