Port Forwarding - Belkin - F5D7230-4 v9 (Belkin Firmware)

Belkin - F5D7230-4 v9 (Belkin Firmware)


Port Forwarding Guide
For automatic port forwarding try Simple Port Forwarding

Step 1.

Some routers & modems work best with port forwarding if you have a static local IP.
Manually set your network interface card ( NIC ) to use a static ip address.
You can also download my FREE Simple Static IP tool to set it for you.

Step 2.

Open your favorite web browser and input your routers ip address in the address bar.
Please note that you must have the http:// in order to connect to your router/modem properly.

Need help finding you router IP address? Click here

Step 3.

Some router/modems require a username and/or password, if yours requires it, enter the routers username and password here.

If you don't know it you can check our list of default router and modem password list here.

If you have changed it and don't remember it you may have to reset your device to factory default using the reset button on most routers.

Step 4.

Once logged into your router click on "Virtual Servers".

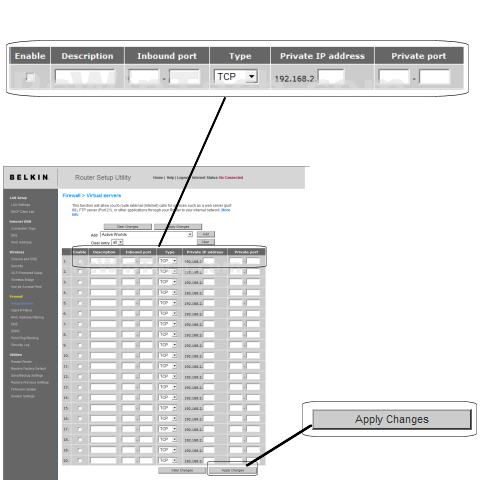

Click To View Full Picture

Step 5.

On 'Enable' make sure to check mark it.

Under 'Description' Give your entry a name, it must not be the same as any others on this page.

In 'Inbound port' & 'Private port' enter the ports to be forwarded.
Example: 2100 to 2200 or 3000 to 3000

For 'Type' select the protocol for the ports.

In the 'Private IP Address' field put the local IP of the computer the ports will be forwarded to.

Repeat this step for all ports.




Click To View Full Picture

Step 6.

Click 'Apply Changes' once all ports have been entered.

All done!
